SMART CARDS


//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

GOLDWAFER PIC 16F84 + EEPROM 24LC16B

Price £2.50ea

              Discounts 4 quantities

+ 10  Ask for prices
+ 25  EMAIL US
+ 100



                       TECHNICAL SPECIFICATION

Smart Card with 8Bit Multi Chip, which can be programmed, compatible format ISO7816-1. It joins a PIC 16F84 and a EEPROM 24LC16B in a wafer format. The Smart Card is distinguished by a great memory of pieces of information, which makes easy the programming. This platform is flexible, simple and easy to program in a short time..

(Unexposed cards without neither any kind of programming
nor pieces of information)

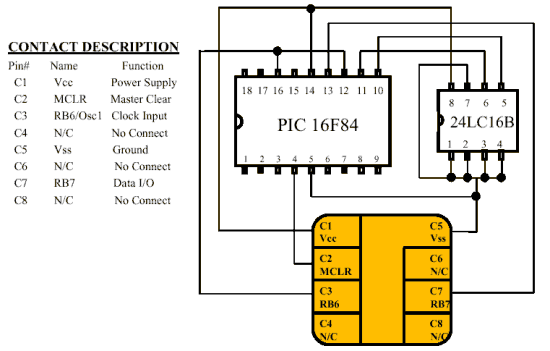

ISO 7816-1 Compatible Pin-out
ISO 7816-1 Compatible Card Body
Single 5V Operation
DC to 10 MHz Operating Speed
DC to 400 ns Instruction Cycle
Harvard Architecture
35 Word Single Word RISC Instructions
Re-programmable with Code Protection
1024 X 14 On-Chip Program Memory
64 X 8 Internal EEPROM Memory
16K X 8 Expanded EEPROM Memory
Enhanced Code protection
40 Year Data Retention
> 1,000,000 Write/Erase Cycles
> 2KV ESD Protection

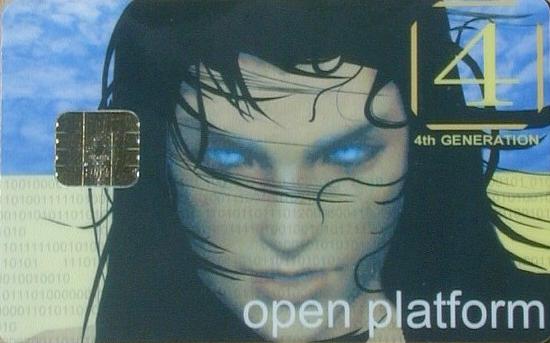

ATMEL FUN 4 CARDS
AT9S8515 & 24C256 EPROM

Open Platform 4th Generation0ea

              Discounts 4 quantities                5.00ea

+ 10  Ask for prices
+ 25  EMAIL US
+ 100

Price £5.00ea
