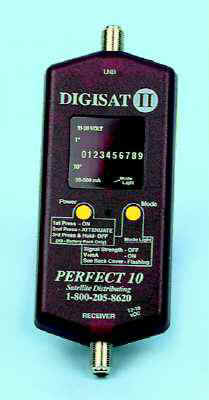

A digital satellite meter with 22kHz indication, used for easy installation of satellite receiver dishes. The satellite meter operates on the power from the receiver to the LNB. Features easy-to-read LED's and a built-in buzzer for straightforward alignment.
| Technical Data |
| Input Frequency 950-2150MHz |
| Input Level 20-100dByV |
| Through Loss 3.5dB |
| Power Supply Receiver or external 12-18V dc battery |
| Power Consumption 10mA (LED)25mA (audio buzzer) |
| Input Impedance 75 F' connector |
| Output Impedance 75 F' connector |
| Dimensions (HxWxD) 14.6x5.8x2.1cm |
